Welcome to Event Microservice

1. Installation

1.1 Prerequisites

Before installing the Event Microservice, ensure that the following dependencies are installed:

• Node.js: Version 14.x or later
• npm: Version 6.x or later
• Docker: If you plan to use Docker for containerization
• TypeScript: Ensure TypeScript is installed globally

1.2 Cloning the Repository

Begin by cloning the Event Microservice repository:

git clone <repository url>
cd event-microservice

1.3 Installing Dependencies

Install the necessary Node.js packages:

npm i

1.4 Running the Service

To run the service in development mode:

npm run start:dev

For production:

npm run build
npm run start:prod

If using Docker, build and run the container:

docker-compose up --build

---

2. Overview of the Event Microservice Architecture

The Event Microservice is designed to handle events, signals, brokers, and related data. It processes and distributes event-related data across the system, interacting with various components within the microservice.

2.1 Core Components

• Modules:
  • EventModule: The primary module that organizes all the services, resolvers, and repositories.
  • AuthModule: Manages authentication within the microservice.
• Services:
  • EventService, SignalService, BrokerService, PublisherService, ItemEventService, TigStackService: These services encapsulate the business logic for handling events, signals, brokers, and related operations.
• Resolvers:
  • Handle GraphQL queries and mutations for events, signals, brokers, publishers, and item events.
• Repositories:
  • Manage data persistence, handling CRUD operations for events, signals, brokers, and other entities in the database.

Event Microservice Architecture

3. Core Services

3.1 Event Service

The EventService manages the creation, processing, and distribution of events within the system.

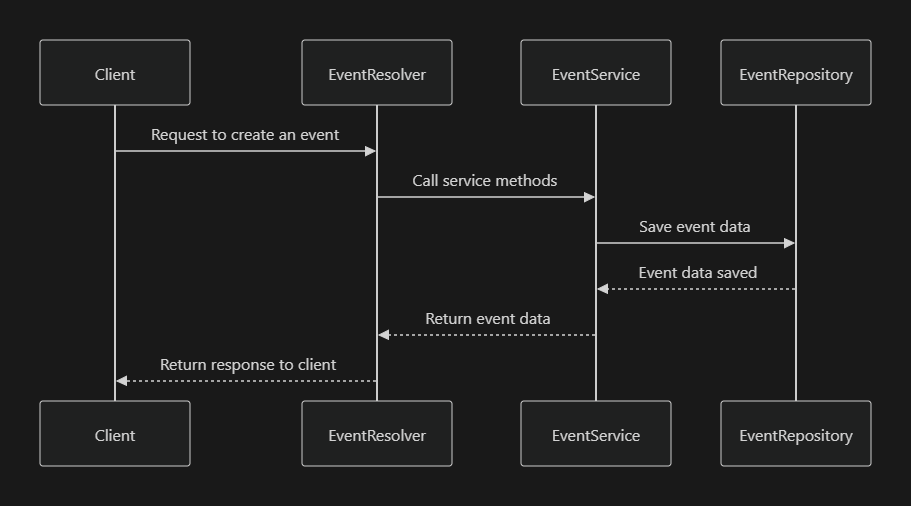

Event Service Interaction

Event Service

@Injectable()
export class EventService {
  constructor(
    @InjectRepository(Event) private eventRepo: Repository<Event>,
    private readonly brokerService: BrokerService,
  ) {}

  async createEvent(data: CreateEventDto): Promise<Event> {
    const event = this.eventRepo.create(data);
    await this.eventRepo.save(event);
    await this.brokerService.publishEvent(event); // Publish event to broker
    return event;
  }

  async findAllEvents(): Promise<Event[]> {
    return await this.eventRepo.find();
  }
}

3.2 Signal Service

The SignalService handles the distribution and processing of signals related to events.

Signal Service Interaction

Signal Service

@Injectable()
export class SignalService {
  constructor(
    @InjectRepository(Signal) private signalRepo: Repository<Signal>,
  ) {}

  async processSignal(data: SignalDto): Promise<Signal> {
    const signal = this.signalRepo.create(data);
    return await this.signalRepo.save(signal);
  }
}

---

4. GraphQL Resolvers

Resolvers in the Event Microservice translate incoming GraphQL queries and mutations into service calls.

4.1 Event Resolver

Handles queries and mutations related to events.

Event Resolver Flow

Event Resolver

@Resolver(() => Event)
export class EventResolver {
  constructor(private readonly eventService: EventService) {}

  @Query(() => [Event])
  async getAllEvents() {
    return this.eventService.findAllEvents();
  }

  @Mutation(() => Event)
  async createEvent(@Args('data') data: CreateEventDto) {
    return this.eventService.createEvent(data);
  }
}

---

5. Repositories

Repositories manage the persistence and retrieval of data from the database.

5.1 Event Repository

The EventRepository handles CRUD operations for event entities.

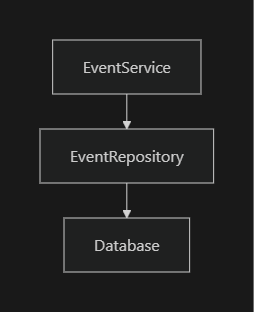

Event Repository Interaction

Event Repository

@EntityRepository(Event)
export class EventRepository extends Repository<Event> {}

---

6. Security and Authentication

The Event Microservice uses JWT tokens for securing access to its endpoints. Authentication is handled by the AuthModule, which integrates with the JwtStrategy and JwtAuthGuard.

6.1 JWT Authentication Flow

1. Client Request: A client sends a request with a JWT token.
2. JWT Validation: The JwtAuthGuard intercepts the request and validates the JWT token.
3. Authorized Access: If the token is valid, the request is processed by the appropriate resolver and service.

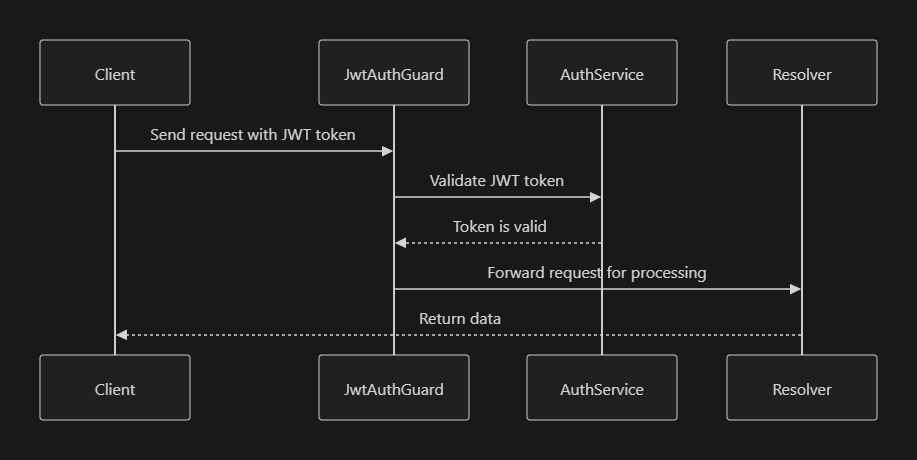

JWT Authentication Flow

JWT Auth Guard

@Injectable()
export class JwtAuthGuard extends AuthGuard('jwt') {}

---

7. Data Flow

The data flow within the Event Microservice involves interaction between the client, resolvers, services, and repositories. Each component plays a specific role in processing requests and managing data.

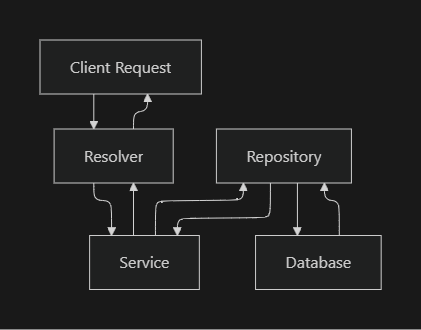

Data Flow in Event Microservice

---

8. Detailed Example: Event Creation and Distribution

When an event is created in the Event Microservice, it triggers various processes, including data persistence, signal distribution, and interaction with brokers.

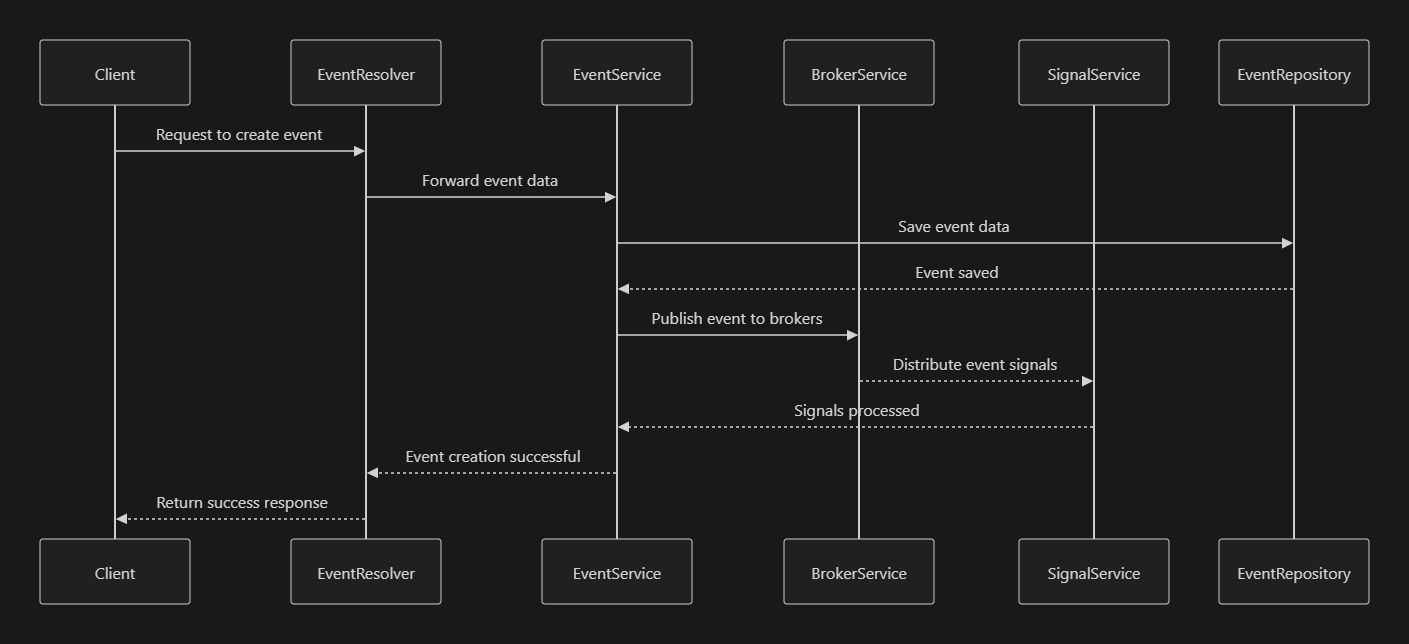

Event Creation and Distribution

Event Service with Broker and Signal Integration

@Injectable()
export class EventService {
  constructor(
    private readonly eventRepo: EventRepository,

    private readonly brokerService: BrokerService,
    private readonly signalService: SignalService,
  ) {}

  async createEvent(data: CreateEventDto): Promise<Event> {
    const event = this.eventRepo.create(data);
    await this.eventRepo.save(event);
    await this.brokerService.publishEvent(event);
    await this.signalService.processSignal({ eventId: event.id });
    return event;
  }
}

---

Event creation update

The event in the Event microservices is created by submitting a payload to the mutation

9. Conclusion

The Event Microservice is a robust and modular system designed to handle events, signals, brokers, and related data. Through well-defined services, resolvers, and repositories, it manages the lifecycle of events from creation to distribution. Security is enforced through JWT-based authentication, ensuring that only authorized users can interact with the service.

Mutations and Queries

Operation	Resolver (broker.resolver.ts)	Service (broker.service.ts)	Description
getAllBrokers	Accepts ConnectionArgs for pagination	1. Gets limit and offset from pagination params 2. Calls repository's findAndCount 3. Creates paginated response using connectionFromArraySlice 4. Returns page and pageData	Retrieves paginated list of all brokers
getSpecificBroker	Accepts broker ID as ObjectId	Calls repository's findOne with ID	Retrieves a single broker by ID
createBroker	Accepts CreateMQTTBrokerInput	Forwards to repository's createBroker method	Creates a new broker
updateBroker	Accepts UpdateBrokerInput	Forwards to repository's updateBroker method	Updates existing broker
deleteBroker	Accepts broker ID as string	1. Finds broker by ID 2. Removes broker u

Operation	Resolver (event.resolver.ts)	Service (event.service.ts)	Description
getAllEvents	Accepts: 1. GetAllEventsInput filters 2. ConnectionArgs 3. Search string	1. Gets limit and offset from pagination params 2. If search provided: - Gets filtered IDs and count - Finds events with those IDs - Orders by createdAt DESC 3. Creates paginated response 4. Returns page and pageData	Retrieves paginated list of events with optional search
viewEvent	Accepts event ID as ObjectId	Calls repository's findOne with ID	Retrieves a single event by ID
logEvent	Accepts CreateEventInput	Forwards to repository's createEvent method	Creates a new event
updateEvent	Accepts UpdateEventInput	Forwards to repository's updateEvent method	Updates existing event
deleteEvent	Accepts event ID as string	1. Finds event by ID 2. Removes event using removeAndFlush 3. Returns "success"	Deletes an event
signal (ResolveField)	Resolves signal field for Event type	If event has signal, finds signal by ID using signalRepository

Operation	Resolver (item-event.resolver.ts)	Service (item-event.service.ts)	Description
getAllItemEvents	Accepts: 1. ConnectionArgs 2. Search string	1. Gets limit and offset from pagination params 2. Calls repository's findAndCountWithSearch 3. Creates paginated response 4. Returns page and pageData	Retrieves paginated list of all item events with search capability
getAllUnprocessedItemEvents	Accepts: 1. ConnectionArgs 2. Search string	1. Gets limit and offset 2. Calls repository's findUnprocessed 3. Creates paginated response 4. Returns page and pageData	Retrieves only unprocessed item events
createItemEvent	Accepts CreateItemEventInput	1. Creates new ItemEvent instance 2. Sets all properties including defaults 3. Creates record using repository 4. Flushes changes	Creates new item event with extensive property setting
updateItemEvent	Accepts UpdateItemEventInput	1. Finds existing

Operation	Resolver (publisher.resolver.ts)	Service (publisher.service.ts)	Description
getAllPublishers	Accepts ConnectionArgs	1. Gets limit and offset from pagination params 2. Calls repository's findAndCount 3. Creates paginated response 4. Returns page and pageData	Retrieves paginated list of publishers
viewPublisher	Accepts publisher ID as ObjectId	Calls repository's findOne with ID	Retrieves single publisher by ID
logPublisher	Accepts CreatePublisherInput	Forwards to repository's createPublisher method	Creates new publisher
updatePublisher	Accepts UpdatePublisherInput	Forwards to repository's updatePublisher method	Updates existing publisher
deletePublisher	Accepts publisher ID as string	1. Finds publisher by ID 2. Removes using removeAndFlush 3. Returns "success"	Deletes a publisher
microserviceEvents_2024	Accepts PublishEventDto	Forwards to mqttService's publish method	Publishes events through MQTT
broker (ResolveField)	Resolves broker field for Publisher type	If publisher has broker, finds broker b

Operation	Resolver (signal.resolver.ts)	Service (signal.service.ts)	Description
getAllSignals	Accepts ConnectionArgs, optional search string, and optional filters	1. Gets limit and offset from pagination params 2. If search provided, calls getAllSignalsBySearch 3. Creates paginated response using connectionFromArraySlice 4. Orders results by time DESC when searching 5. Returns page and pageData	Retrieves paginated list of signals with optional search functionality
getSpecificSignal	Accepts signal ID as ObjectId	Calls repository's findOne with ID	Retrieves a single signal by ID
emitSignal	Accepts signal ID as ObjectId	1. Finds signal and associated publisher 2. Gets broker details (defaults to mqtt-2.omnivoltaic.com) 3. Connects to MQTT broker 4. Publishes signal's JMP data to publisher's topic 5. Returns "success"	Publishes signal data to MQTT broker
assignPublisherToSignal	Accepts signal ID and publisher ID as ObjectIds	1. Finds signal and publisher 2. Validates both exist 3. Associates publisher with signal 4. Flushes changes to database	Links a publisher to a specific signal
createSignal	Accepts CreateSignalInput	Forwards to repository's createSignal method	Creates a new signal
updateSignal	Accepts UpdateSignalInput	Forwards to repository's updateSignal method	Updates existing signal
deleteSignal	Accepts SignalId as string	1. Finds signal by ID 2. Removes signal 3. Returns "success"	Deletes a signal
archiveSignalClassByTimeStamp	Accepts optional start and end dates	1. Checks/creates S3 bucket object 2. Retrieves signals based on date range 3. Merges with existing archived data 4. Uploads to S3 5. Removes archived signals from repository	Archives signals to S3 based on timestamp range
restoreSignalClassWithTimeStamp	Accepts optional start and end dates	1. Retrieves archived data from S3 2. Filters signals based on date range 3. Recreates signal objects with original IDs 4. Relinks publishers 5. Persists restored signals	Restores archived signals from S3 based on timestamp range
publisher (ResolveField)	Parent signal passed automatically	1. Checks if publisher exists 2. If yes, finds publisher by ID 3. If no, returns null

Operation	Resolver (tig-stack.resolver.ts)	Service (tig-stack.service.ts)	Description
createDistributorTIGStackSubDomain	Accepts CreateDistributorTIGStackSubDomainInput with: - name - distributorEmail - distributorGrafanaPort - distributorInfluxDBPort - distributorMQTTPort - distributorMQTTPassword	1. Clones GitHub repository 2. Updates email in distributor.sh 3. Updates Caddyfile with proxy config 4. Generates mosquitto.conf 5. Updates password file 6. Updates telegraf.conf 7. Creates/updates docker-compose.yml 8. Commits and pushes changes 9. Creates Cloudflare DNS record 10. Returns success/error response	Creates complete TIG stack setup for a new distributor
cloneRepo	N/A	1. Constructs clone URL with auth token 2. Clones repository to local path 3. Changes to repo directory 4. Checks out specified branch	Clones TIG stack repository for modifications
commitAndPush	N/A	1. Sets git config with username/email 2. Pulls latest changes 3. Updates remote URL with token 4. Stages all changes 5. Commits with message 6. Pushes to specified branch	Saves and pushes configuration changes
replaceEmailInFile	N/A	1. Updates distributor.sh email 2. Updates Caddyfile proxy settings 3. Updates docker-compose file 4. Updates Dockerfile port exposure 5. Manages service configurations	Updates configuration files with distributor details
generateMosquittoConf	N/A	1. Creates MQTT broker config 2. Sets up bridge connection 3. Configures TLS and auth 4. Updates mosquitto.sh 5. Sets up topic routing	Configures MQTT broker settings
updateFileAndCreatePasswordFile	N/A	1. Updates mosquitto.sh 2. Creates/updates password.txt 3. Stores credentials	Manages MQTT authentication
updateTelegrafFile	N/A	1. Creates telegraf.conf 2. Configures inputs (MQTT, system) 3. Sets up InfluxDB output 4. Configures monitoring intervals	Sets up metrics collection
createOrUpdateTIGStackDockerComposeFile	N/A	1. Creates/loads docker-compose.yml 2. Configures Caddy service 3. Sets up Grafana service 4. Configures MQTT service 5. Sets up InfluxDB service 6. Configures Telegraf service 7. Saves updated config	Manages container orchestration
deleteLocalRepo	N/A

Purpose of the Event Microservice

The Event microservice is designed to manage and record various actions or occurrences within the system. It plays a crucial role in tracking activities and interactions by capturing detailed event data.

Goals

• Activity Recording: Capture and record significant actions or occurrences within the system, providing a detailed log of system events.
• Real-time Monitoring: Enable real-time monitoring of activities, facilitating immediate response to critical events or anomalies.
• Insight Generation: Provide valuable insights into system operations and user behaviors through comprehensive event logging.

Key Components

Core Elements of an Event

• Event Identifier: A unique identifier for each observable and relevant occurrence within the system.
• Actor: Represents the entity initiating the event. This could be integrated with objects from Thing, Person, or Client services for more detailed information.
• Place: Specifies the location of the event using geographical coordinates and addresses.
• Time: Records the exact time of the event using a universal timestamp.
• Message: The content or signal emitted by the event, which can trigger reactions or further actions in the system.

Functionality and Usage

1. Event Recording:
   • The service captures and records various types of events occurring within the system.
   • Capturing Events: The microservice is designed to capture a wide array of events within your company’s systems. An event, in this context, refers to any significant occurrence or action that needs to be tracked. This could range from user actions, system changes, transactions, to other significant activities.
   • Comprehensive Event Data: Each event captured includes several key components:
     • Actor: This is the initiator of the event. It could be a user, a system process, or any entity that triggers the event. The microservice can link this actor to other objects in services like Thing, Person, or Client, providing a richer context and more detailed information about who or what initiated the event.
     • Place: It records the spatial location where the event occurred. This is particularly important for events that are geographically specific or for tracking movements and locations in real-time.
     • Time: The exact timestamp of when the event occurred is recorded. This is crucial for creating a chronological record and for time-specific analysis.
     • Message: This is the information or data emitted by the event. It could be a simple notification, a detailed data payload, or a signal intended to trigger other processes or workflows.
2. Integration with Other Services:
3. The microservice doesn’t operate in isolation but integrates with other services in your company. For instance, linking with the Thing service for events related to physical devices, or the Client service for events involving client interactions.

4. This integration capability allows for a holistic view of events across different aspects of your business operations.

5. Triggers and Automated Responses

6. Events captured can be utilized to trigger automated responses or workflows. For example, if a specific type of event occurs, it could automatically initiate a process or alert the relevant teams or systems.

7. Data Retrieval and Analysis:
   • By aggregating and analyzing event data, the service provides valuable insights. This could include understanding user behavior, system performance, operational efficiency, and more.
   • The data can be used for real-time monitoring as well as for historical analysis and reporting.
